Overview

Edmund Optics^® employs a wide variety of metrology equipment to ensure the quality of the optical components and assemblies manufactured in our 5 global manufacturing facilities. We also conduct in-house testing of imaging performance and environmental testing for temperature, humidity, and shock and vibration. Edmund Optics has a proven track record of tailored testing for custom optical assemblies. Product testing and certification reports are also available upon request. Our metrology equipment, including interferometers, profilometers, spectrophotometers, and coordinate measurement machines (CMMs), is one component of Edmund Optics' strict global quality program – to learn more about the program, please visit our Quality webpage.

Capabilities

Optical Metrology Capabilities

Interferometers, Profilometers, Coordinate Measurement Machines (CMM), and a host of Optical and Mechanical Metrology
Radiometrics: Straylight, Veiling Glare, and more
Semi-Automated MTF Measurement Equipment
UV/VIS/NIR Coating Characterization through Varian and PerkinElmer Spectrophotometers
Environmental Testing Equipment such as Vibration, Humidity, Immersion, and Thermal Cycling
Calibration of Equipment in Accordance with FDA 21 CFR Part 11, ISO 9001, ISO 13485, and AS9100 via GageTrak by Cybermetrics
Over 50 Employees in Quality Control Functions Across the Company
Product Testing and Certification Reports Available Upon Request

In-House Optical Assembly Testing

MTF
Stray Light
Telecentricity
Wavefront Distortion
White Light Interferometry
Mechanical Profilometry
Laser Beam Profiling
Much More!

State-of-the-Art Equipment

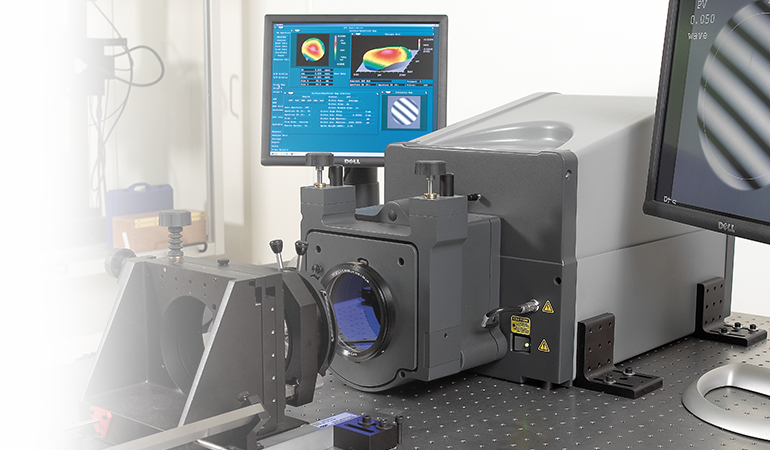

Zygo^® VeriFire™ High Resolution InterferometersInterferometers are instruments used to measure small displacements, refractive index changes, and surface irregularities. They split light from a single source into two separate beams that travel different optical paths before recombining. Interference fringes are then formed, which provides information on the difference in optical path length between the two paths. Interferometers are often used to measure the surface accuracy of optics.
QED ASI Aspheric Stitching InterferometersInterferometers are instruments used to measure small displacements, refractive index changes, and surface irregularities. They split light from a single source into two separate beams that travel different optical paths before recombining. Interference fringes are then formed, which provides information on the difference in optical path length between the two paths. Interferometers are often used to measure the surface accuracy of optics.
Fujinan InterferometersInterferometers are instruments used to measure small displacements, refractive index changes, and surface irregularities. They split light from a single source into two separate beams that travel different optical paths before recombining. Interference fringes are then formed, which provides information on the difference in optical path length between the two paths. Interferometers are often used to measure the surface accuracy of optics.
Xonox InterferometersInterferometers are instruments used to measure small displacements, refractive index changes, and surface irregularities. They split light from a single source into two separate beams that travel different optical paths before recombining. Interference fringes are then formed, which provides information on the difference in optical path length between the two paths. Interferometers are often used to measure the surface accuracy of optics.
TRIOPTICS Opticentric^® Centration Measurement MachinesCentration Measurement Machines are used to measure the misalignment between the mechanical and optical axes of lenses.
Zeiss Contura G2 CMMsCMMs, or coordinate measuring machines, are instruments used for measuring the physical dimensions of optics. They can be computer controlled or manually operated.
Talysurf PGI 1240 ProfilometersProfilometers are instruments used to measure the surface topography of optics, which provides information on curvature, flatness, and irregularity
LUPHOScan Non-Contact 3D ProfilometersProfilometers are instruments used to measure the surface topography of optics, which provides information on curvature, flatness, and irregularity
Zygo^® NewView™ Optical Profiler
OptiPro UltraSurf 4X 100 Metrology Systems
OGP Smartscopes
Nikon AutocollimatorsAutocollimators are optical instruments used to make non-contact measurements of angles. They are often used to measure the accuracy of prism angles.
DigiMicro Microscopes Microscopes are used to determine the surface quality of optics.
Olympus MX51 Microscopes Microscopes are used to determine the surface quality of optics.
Park Systems XE-100 Atomic Force Microscope (AFM) Atomic force microscopes (AFM) measure a sample's surface topography with atomic resolution by scanning an extremely small and sharp tip across the surface. This 3D reconstruction of the surface is used to quantify surface roughness.
Shack-Hartmann Wavefront Sensors (SHWFS) Shack-Hartmann wavefront sensors (SHWFS) use an array of microlenses to measure the transmitted and reflected wavefront error of an optical component or system with high dynamic range and accuracy.
Cavity Ring Down Spectrometers (CRDS) Cavity Ring Down Spectrometers (CRDS) make high sensitivity loss measurements for both reflective and transmissive optics by measuring the decay of a laser pulse sent into a resonant cavity bounded by two highly reflective mirrors.

Zygo^® VeriFire™ High Resolution Interferometer

Meet Pat McKenna: Metrology Master

Meet Pat McKenna, Optical Engineer and Edmund Optics' Metrology Master. Pat is prepared to help you measure your optic with the utmost precision, no matter the size or tolerance. When you need accuracy down to the wavelength – what can we measure for you? Contact us today!

Watch Now!

Application Notes

Technical information and application examples including theoretical explanations, equations, graphical illustrations, and much more.

Laser Damage Threshold Testing
Read

Optical Flats
Read

Edmund Optics Preferred Glasses
Read

Understanding Optical Specifications
Read

Understanding Surface Quality Specifications based on U.S. Standard MIL-PRF-13830B
Read

Published Articles

Links to technical articles appearing in industry publications authored by Edmund Optics^® or featuring contributions from Edmund Optics' engineering team and key management.

The Long and Short of It: Techniques for Measuring Aspheres
