90° Kinematic Adapter

×
Stock #34-248 In Stock
×
Quantity Selector - Use the plus and minus buttons to adjust the quantity. +
C$180.60
Qty 1+
C$180.60
Volume Pricing
Request Quote
Get Product Downloads
Function:
Angle Adjustment

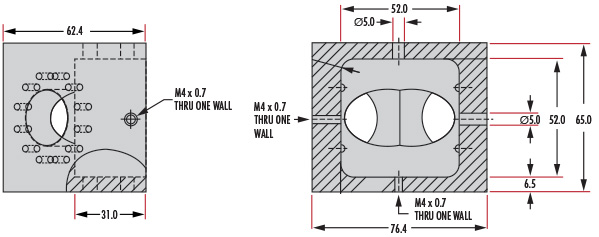

Length (mm):
62.40
Width (mm):
76.40
Thread Type:
C-Mount
Bolt Circle Diameter for M3 Tapped (mm):
38.0
Compatible Post:
M6 x 1.0
Note:
25.0/25.4mm TECHSPEC® Kinematic Mount required
Construction:
Black Anodized Aluminum

Regulatory Compliance

RoHS 2015:
Compliant
×
Reach 224:
Compliant
×
Certificate of Conformance:
View
×

Product Family Description

  • C-Mount and Cage System Compatible
  • M6 Mounting Hole
  • Compatible with Most TECHSPEC® Kinematic Mounts

The TECHSPEC® 90° Kinematic Adapter is designed to provide a stable and precise mounting solution for kinematic mounts during laser alignment. This adapter offers thick walls and sturdy mounting, resulting in a naturally damped housing. Our TECHSPEC 90° Kinematic Adapter is designed for use with TECHSPEC Kinematic Optical Mounts, which are required for operation. Kinematic Optical Mounts offer lockable adjustment screws for long term stability. Through combining the Kinematic Adapter, a Kinematic Optical Mount, and TECHSPEC Laser Mirrors, reliable integration into laser machining, cinema, or life science applications is obtainable.
